ball valves

home>products

Hills-McCanna® ChemTite® PFA Lined

Hills-McCanna ChemTite Ball Valve
Hills McCanna

  • Ductile Iron Body
  • Heavy Duty PFA Lining

Ideally Suited For:

  • Strong Acids Up To 98% Sulfuric
  • Solvents, Caustics, Chlorides
  • Sulfates, Phenols, Peroxides
  • Bleach Solutions
  • Temperatures from -20 °F to 400 °F
  • Full Vacuum to 250 PSIG

Learn More

Nil-Cor® Composite

Nil-Cor Composite Valves
Nil-Cor

  • Advanced Thermoset Resins Reinforced with Glass or Graphite Fibers
  • Optional Characterized Ball For Control
  • Self Relieving Seats

Ideally Suited For:

  • Strong Acids Up To 98% Sulfuric
  • Solvents, Caustics, Chlorides
  • Sulfates, Phenols, Peroxides
  • Temperatures from -50 °F to 300 °F
  • Full Vacuum to 275 PSIG

Learn More

PureFlex® Composite

PureFlex Composite Valves
PureFlex

  • Advanced Thermoset Resins Reinforced with Glass or Graphite Fibers
  • Optional Characterized Ball For Control
  • PTFE Cavity Filled Seats

Ideally Suited For:

  • Strong Acids Up To 98% Sulfuric
  • Solvents, Caustics, Chlorides
  • Sulfates,Phenols, Peroxides
  • Temperatures from -50 °F to 275 °F
  • Full Vacuum to 275 PSIG

Learn More

Nil-Cor® Ceramic or UHMWPE Lined Composite

Nil-Cor Ceramic or UHMWPE Lined Valves
Nil-Cor

  • Advanced Thermoset Resins Reinforced with Graphite Fibers
  • Partially Stabilized Zirconia Ceramic Liner & Ball For Services -50 °F to 300 °F
  • Optional UHMWPE Liner with Ceramic Ball For Services -50 °F to 180 °F

Ideally Suited For:

  • Abrasive Slurries
  • Severe Corrosive Services
  • Full Vacuum to 200 PSIG

Learn More

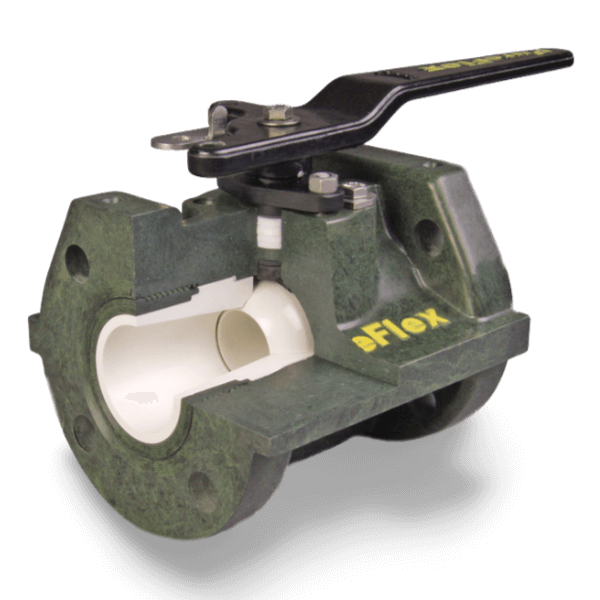

PureFlex® Ceramic Lined Composite

PureFlex Ceramic Lined Composite Valve
PureFlex

  • Advanced Thermoset Resins Reinforced with Graphite Fibers
  • Y-TZP(Yttria-Partially Stabilized Zirconia) Liner, Seats & Ball

Ideally Suited For:

  • Abrasive Slurries
  • Thermal Cycling Processes
  • Severe Corrosive Media
  • Temperatures from -50 °F to 275 °F
  • Full Vacuum to 275 PSIG

Learn More

Nil-Cor® Polysulfone Composite

Nil-Cor Polysulfone Composite
Nil-Cor

  • Advanced Glass Fiber Reinforced, Compression Molded Thermoplastic Resin
  • Resin FDA Approved for Food Contact
  • Flanged Design 1"-4"
  • Threaded Design .5" - 2"

Ideally Suited For:

  • Caustics
  • Sodium Hypochlorite Solutions
  • Temperatures from -50 °F to 300 °F
  • Full Vacuum to 275 PSIG

Learn More

PolyValve® Polyethylene

PolyValve Polyethylene
Polyvalve

  • High Density Polyethylene
  • Fused Body Shell
  • Available in SDR 9, 11, 13, 17
  • Smooth Bore
  • .5" - 12" Diameter Valves Available

Ideally Suited For:

  • Natural Gas Distribution & Gathering
  • Landfill & Hydrocarbon Fuel Gases
  • Water, Wastewater, Irrigation
  • Chemical Services (Acids/Bases)
  • Temperatures & Pressure Service Dependant

Learn More
